Our Products

50MM PIN,SOLID,HOLLOW

50MM PIN Solid Hollow

PRODUCT CODE : SBA001

  • SPECIFICATIONS
  • Electro zinc plated -Solid Electro zinc plated -Hollow (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.07 0.05
LONG PIN-132mm

LONG PIN-132 mm

PRODUCT CODE : SBA002

  • SPECIFICATIONS
  • Beam Bar Pin 132 mm ( Mivan ) Electro zinc plated (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.18
WEDGES

WEDGES 80 X 3mm 75 X 3mm 70 X 2.6 mm 75 X 2.5mm

PRODUCT CODE : SBA003

  • SPECIFICATIONS
  • Wedges with hole & Emboseed Zinc Electro plated (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.032 0.031 0.023 0.026

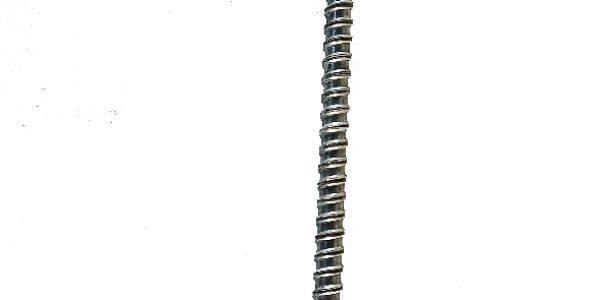

TIE ROD

TIE ROD

PRODUCT CODE : SBA004

  • SPECIFICATIONS
  • Tie Rod 3 mtr 16MM Dia long Grade-EN8D (Included Aluminium formwork System)
  • UNIT
  • Per RMT
  • WEIGHT (Kgs)
  • 1.68

WING NUT

PRODUCT CODE : SBA005

  • SPECIFICATIONS
  • Zinc Electro plated (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.230

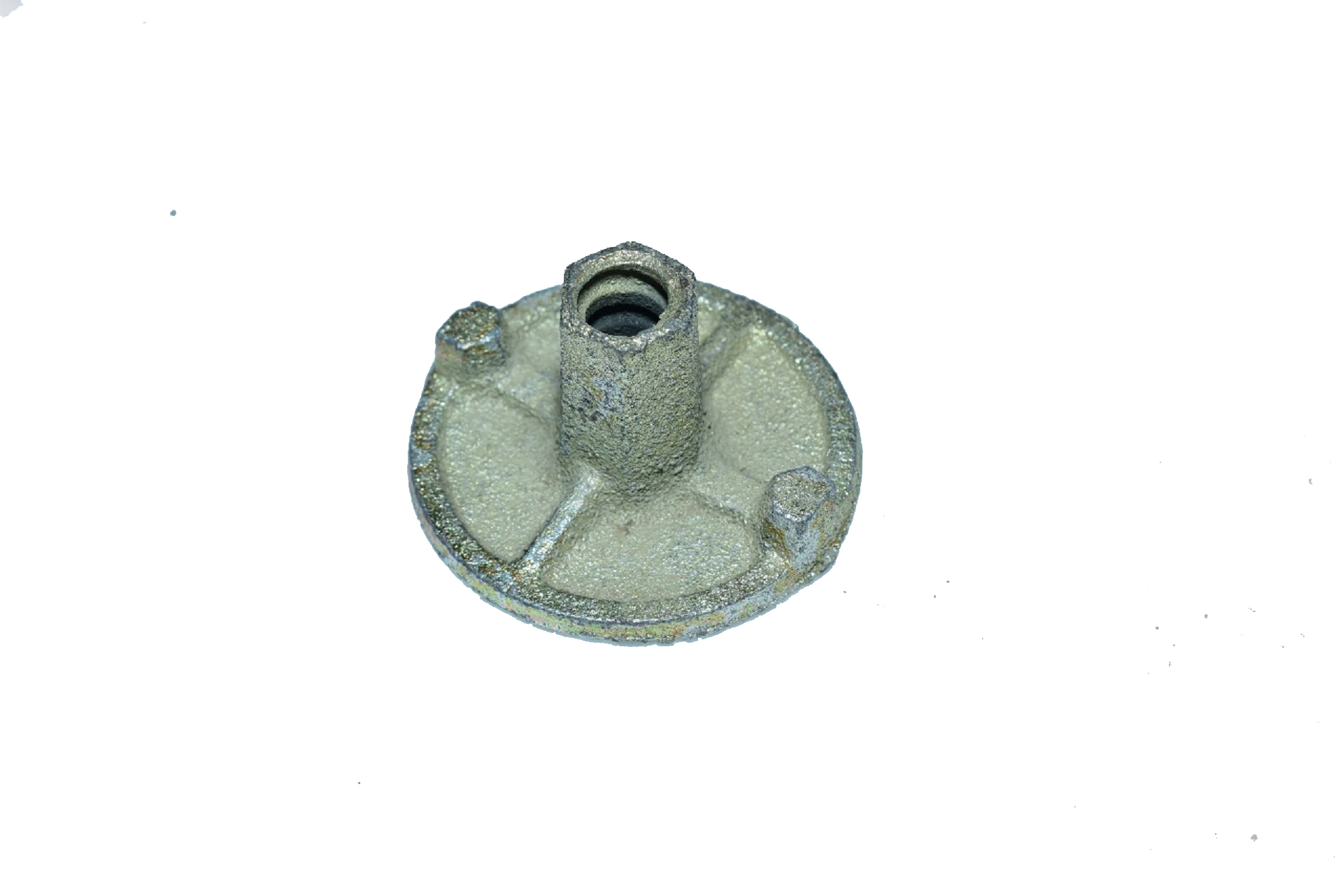

Anchor Nut 100 mm OD

PRODUCT CODE : SBA006

  • SPECIFICATIONS
  • Anchor Nut 100 mm OD (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.500
Get Quote

ROCKER BOLT

PRODUCT CODE : SBA007

  • SPECIFICATIONS
  • M 16 X 30 mild steel bolt Grade 7M (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.076

WEDGES 80 X 3mm 75 X 3mm 70 X 2.6 mm 75 X 2.5mm

PRODUCT CODE : SBA008

  • SPECIFICATIONS
  • Wedges with hole & Emboseed Zinc Electro plated (Included Aluminium formwork System)
  • UNIT
  • Per No, Per No, Per No, Per No
  • WEIGHT (Kgs)
  • 0.032, 0.031, 0.023, 0.026

KICKER BOLT

PRODUCT CODE : SBA009

  • SPECIFICATIONS
  • M 16 X 80 M. S. Kicker Grade 7M (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.153

FLAT WASHER

PRODUCT CODE : SBA010

  • SPECIFICATIONS
  • M. S. Washer M 16 Grade 7M (Exclusive Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.012

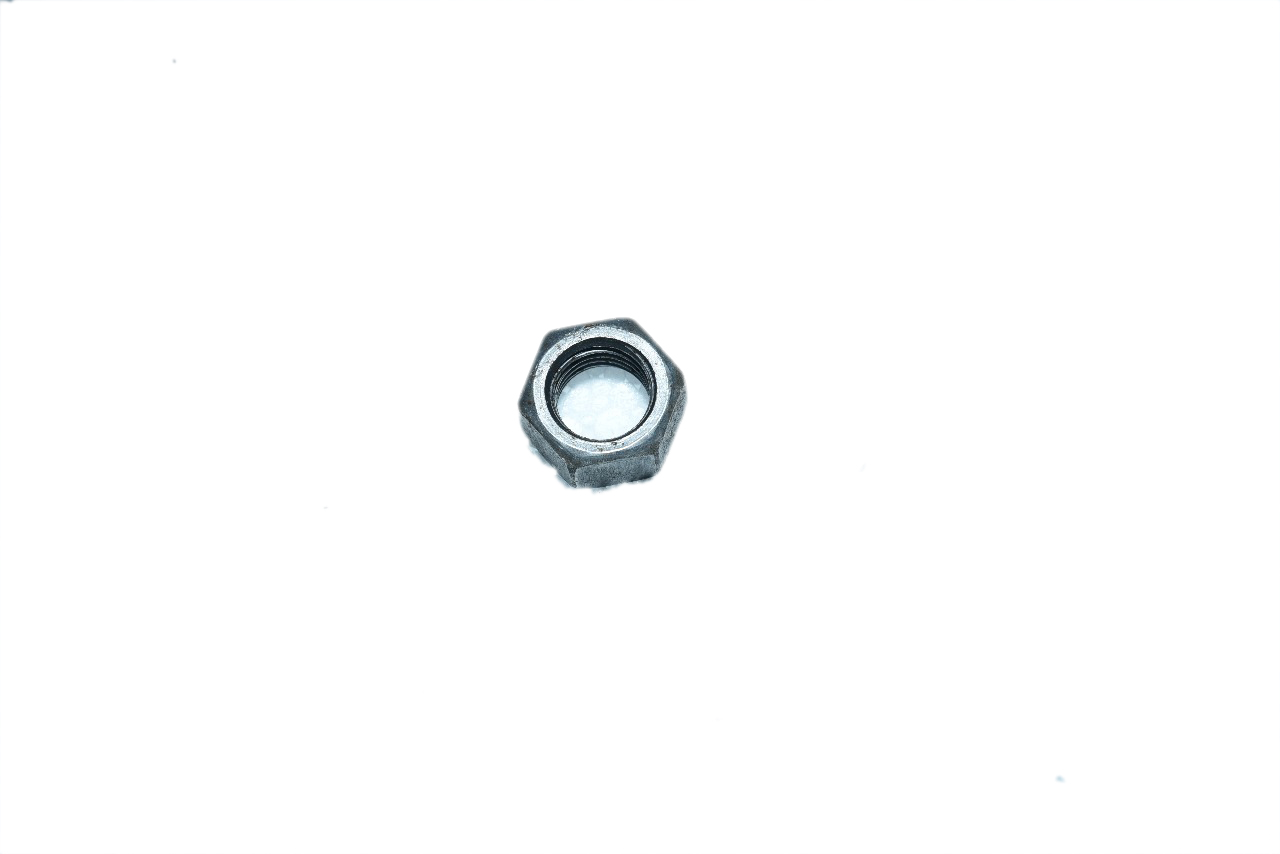

HEX NUT

PRODUCT CODE : SBA011

  • SPECIFICATIONS
  • Hex Kicker Nut M 16 Grade 7M (Included Aluminium formwork System)
  • UNIT
  • Per No, Per No, Per No, Per No
  • WEIGHT (Kgs)
  • 0.03

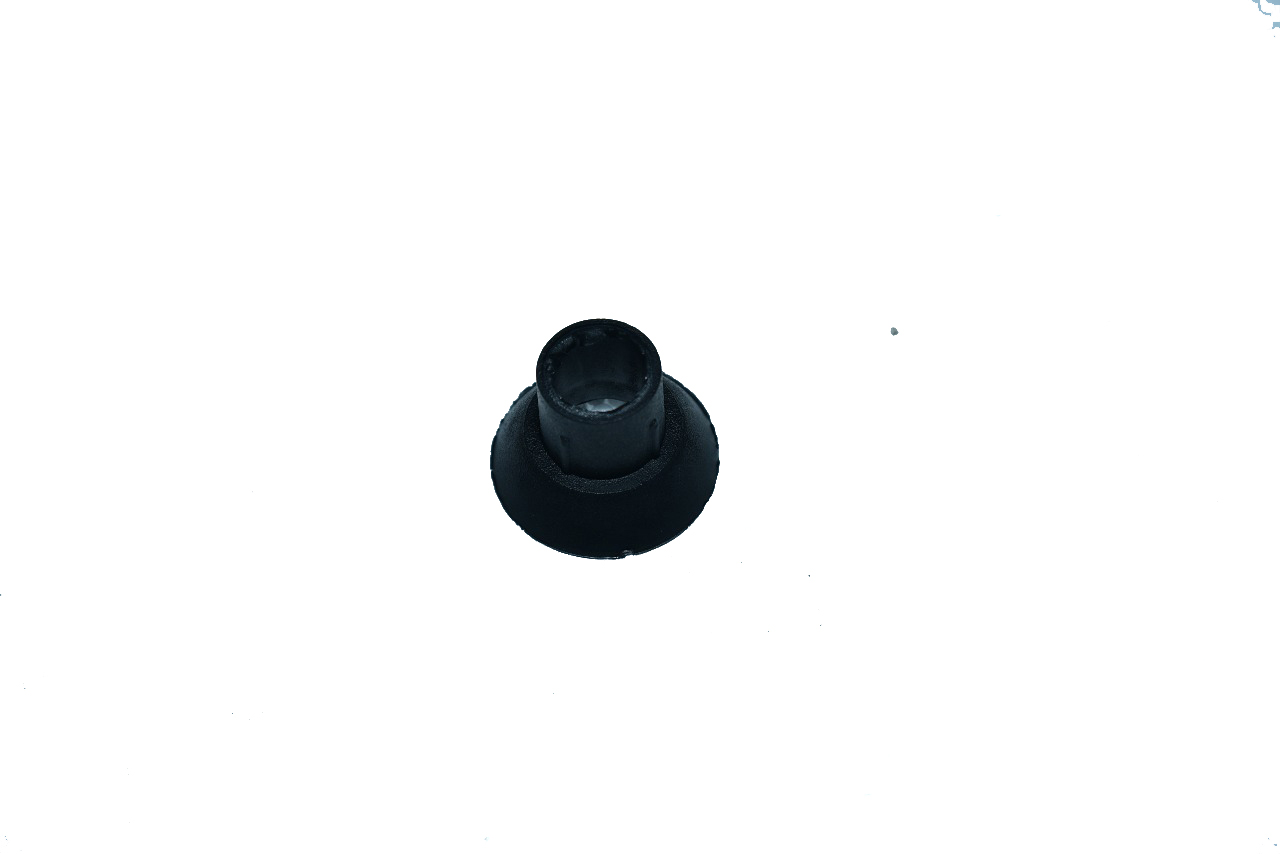

PVC CONE

PRODUCT CODE : SBA012

  • SPECIFICATIONS
  • P. V. C. Cone for 22 mm - Id Pipe (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.002
Get Quote

PVC ROLL

PRODUCT CODE : SBA013

  • SPECIFICATIONS
  • Polythene tubing 53 mm 375 GSM 1 Roll = 100 RMT (Included Aluminium formwork System)
  • UNIT
  • 100 RMT
  • WEIGHT (Kgs)
  • 1.76

CORRUGATED SHEET

PRODUCT CODE : SBA014

  • SPECIFICATIONS
  • Corrugated Polypropylene Sheet ( 1220 X 1830 X 2.8 mm Sheet 375 GSM (Included Aluminium formwork System)
  • UNIT
  • Per Sheet
  • WEIGHT (Kgs)
  • 0.03

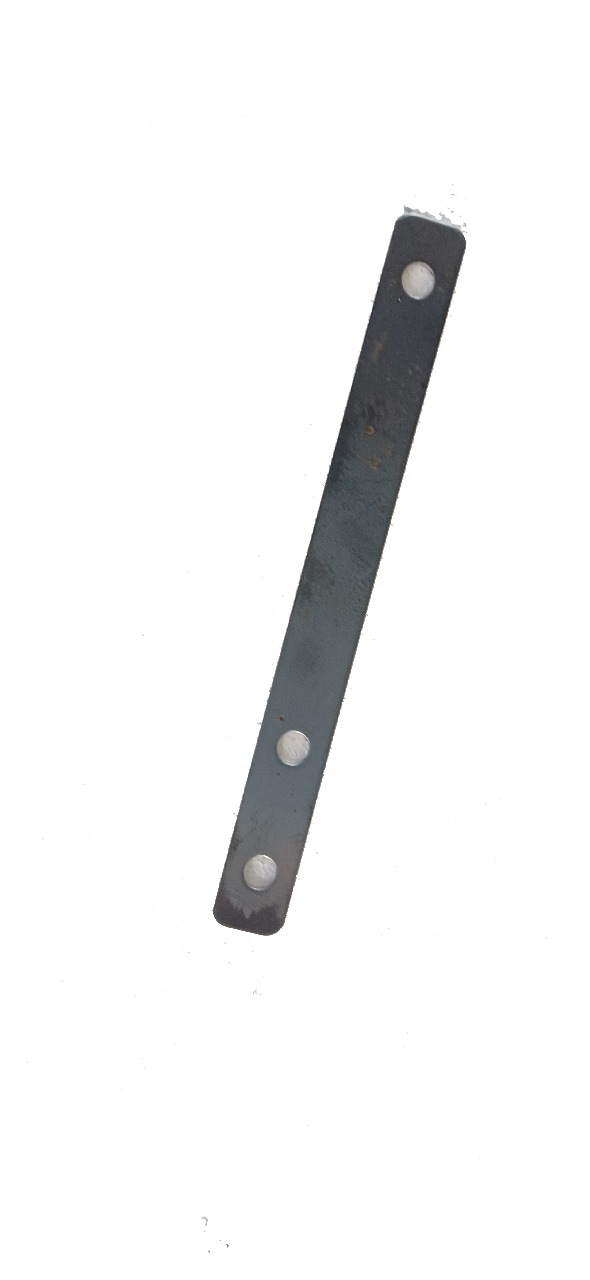

WALL TIE 100 120 150 160 175 200 230 250 275 300 350 375 400 450

PRODUCT CODE : SBA015

  • SPECIFICATIONS
  • Grade-EN-250A Size-Wall length+205 38x3mm+ length Max Length of wall=450 mm+205 (Included Aluminium formwork System) 305 mm wall tie 325 mm wall tie 355 365 380 405 435 455 480 580 605 655
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.29 0.32 0.33 0.34 0.36 0.39 0.41, 0.43, 0.45, 0.5, 0.52 ,0.54 ,0.59

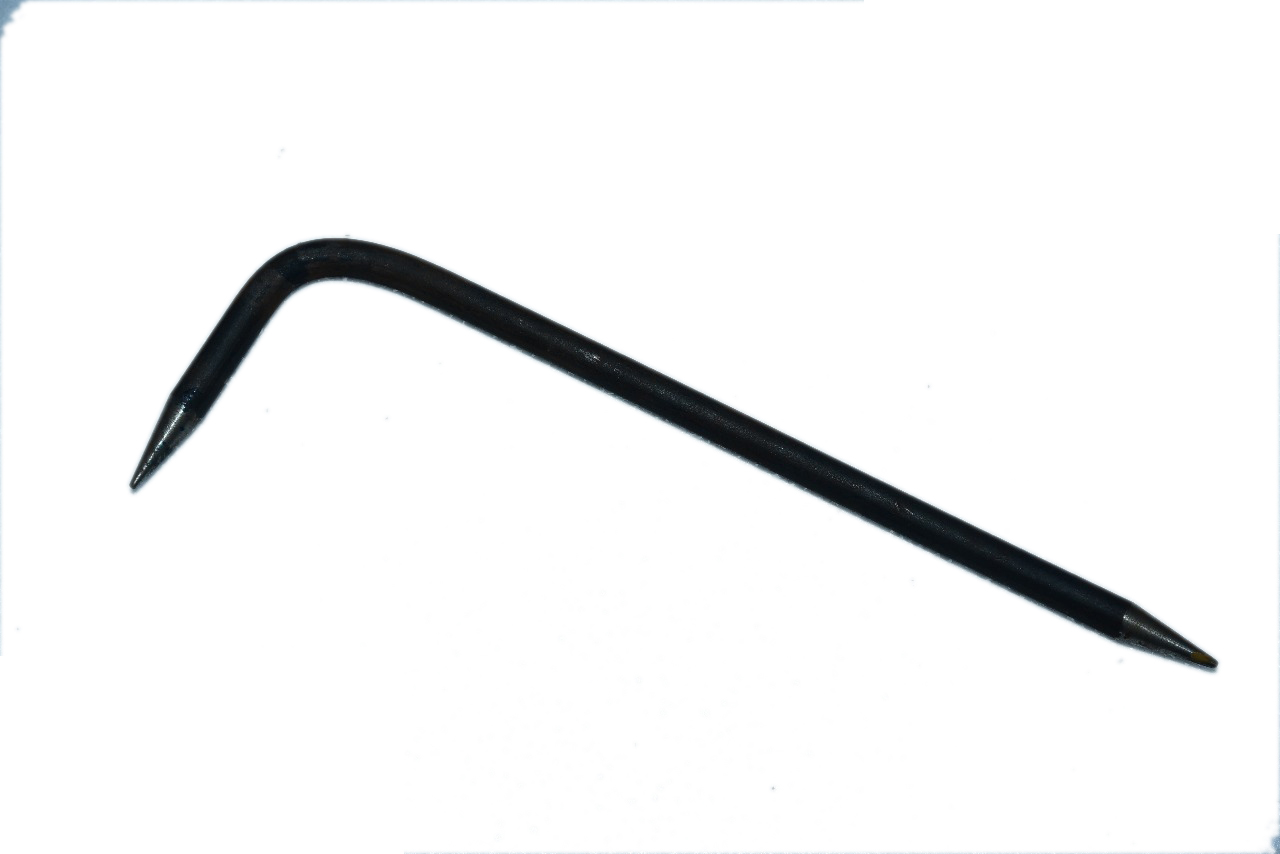

HOLE BARI

PRODUCT CODE : SBA016

  • SPECIFICATIONS
  • Hole Bari 350mm Length (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.700

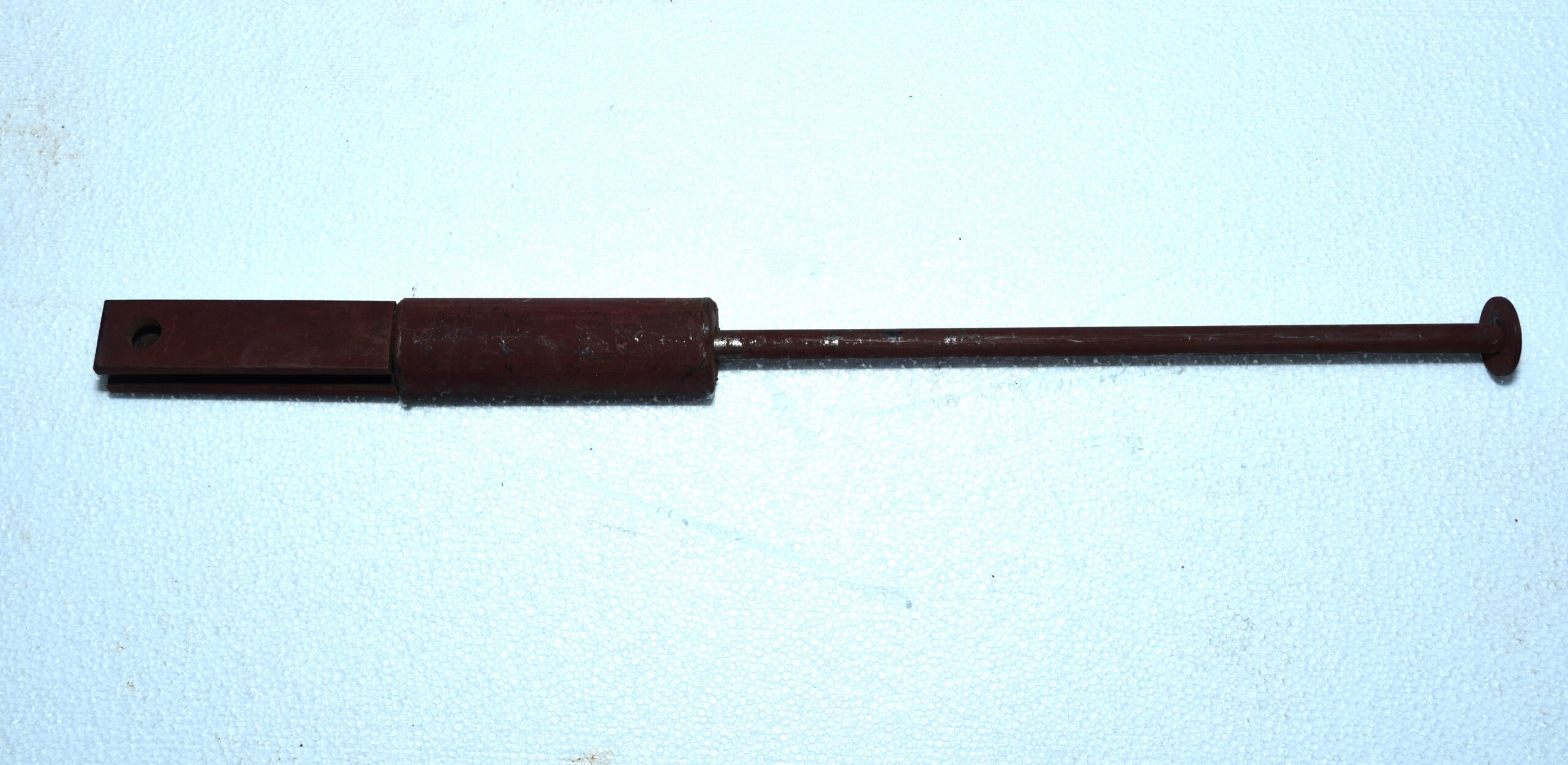

WALL TIE PULLAR

PRODUCT CODE : SBA017

  • SPECIFICATIONS
  • Tie Puller (Included Aluminium formwork System)
  • UNIT
  • Per Sheet
  • WEIGHT (Kgs)
  • 3.85

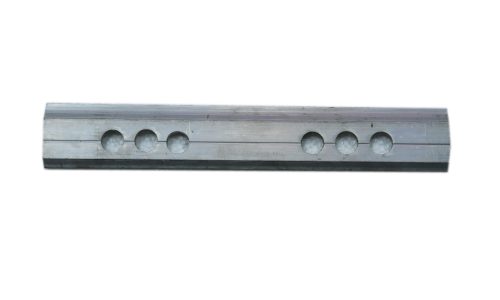

BKS PATTI

PRODUCT CODE : SBA018

  • SPECIFICATIONS
  • Aluminium BKS Joint Patti 300 mm Grade-T6-6061 (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.335
Get Quote

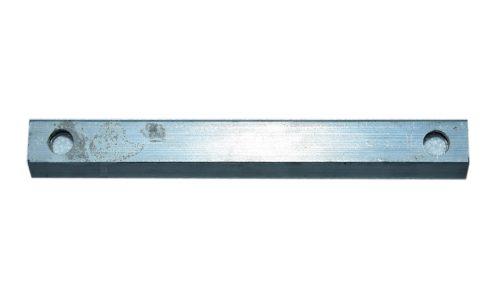

BEAM BAR SB MFE MAINI S-FORM

PRODUCT CODE : SBA019

  • SPECIFICATIONS
  • Aluminium Beam Bar 350mm length Grade-T6-6061 (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.482 0.580

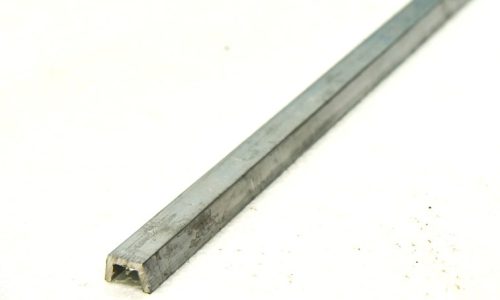

DRIP MOULD GROOVES 21x15x12 3mm thk

PRODUCT CODE : SBA020

  • SPECIFICATIONS
  • Aluminium Water Drip Mould 15 mm X 12 mm X 20 mm Grove Patti Grade-T6-6061 (Included Aluminium formwork System)
  • UNIT
  • Per Rmt
  • WEIGHT (Kgs)
  • 0.268

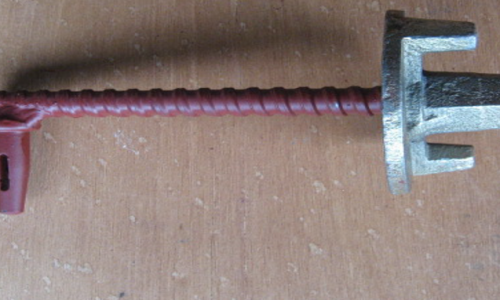

Dyewedge PIN

PRODUCT CODE : SBA021

  • SPECIFICATIONS
  • Dywidage Pin 275 mm long (Included Aluminium formwork System) Based on Design
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.55

TIEROD WITH BOLTED

PRODUCT CODE : SBA022

  • SPECIFICATIONS
  • 16mm Dia Rod 550 mm Long (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.85

WALLER CLAMP

PRODUCT CODE : SBA023

  • SPECIFICATIONS
  • Electro Zinc Plated (Included Aluminium formwork System)
  • UNIT
  • Per Rmt
  • WEIGHT (Kgs)
  • 0.580

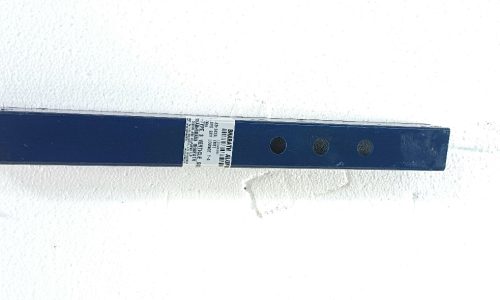

VERTICAL SOLDIER

PRODUCT CODE : SBA024

  • SPECIFICATIONS
  • Vertical soldiers -1m Height 50 X 50 X3 MM Pipe blue Colur coating " Grade-YST 210 " (Included Aluminium formwork System)
  • UNIT
  • Rmt
  • WEIGHT (Kgs)
  • 4.3
Get Quote

WALLER BEAM

PRODUCT CODE : SBA026

  • SPECIFICATIONS
  • 50mm X 50mm X 3 mmLENGTH blue Colur coating Grade-YST 210 (Included Aluminium formwork System)
  • UNIT
  • Rmt
  • WEIGHT (Kgs)
  • 4.3

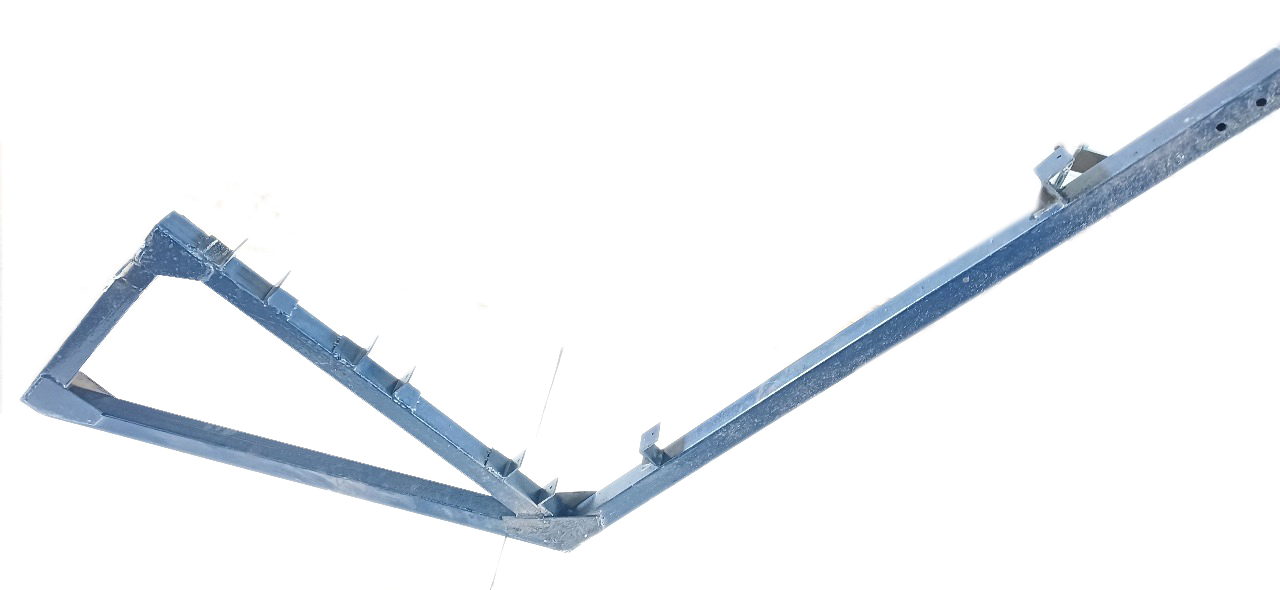

WALL BRACKETS

PRODUCT CODE : SBA028

  • SPECIFICATIONS
  • M. S. Wall Bracket blue Colur coating Grade-YST-210 (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 14.93

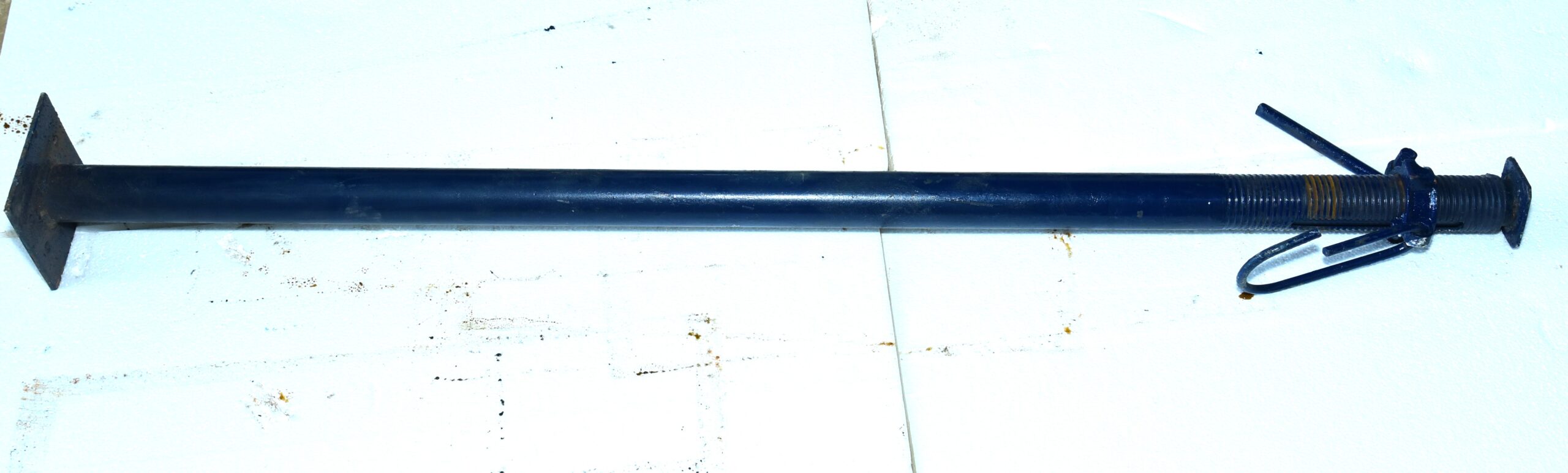

ADJUSTABLE PROPS

PRODUCT CODE : SBA027

  • SPECIFICATIONS
  • M S Props 2.0 OUTER+1.5 M INNER blue Colur coating 1.0 OUTER+0.75 M INNER (WINDOW PROPS) (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 9.5

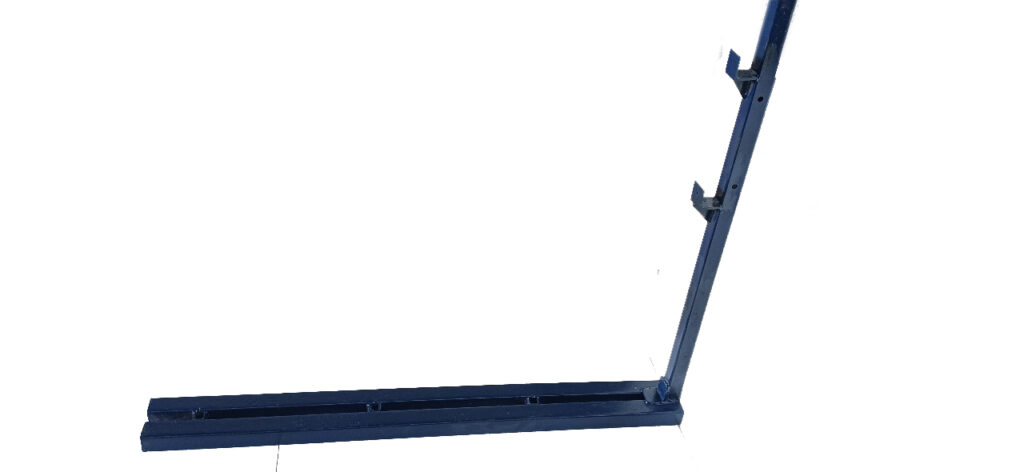

SLAB BRACKET

PRODUCT CODE : SBA029

  • SPECIFICATIONS
  • M. S. Slab Bracket Grade-YST-210 Blue Colur coating (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 12.05

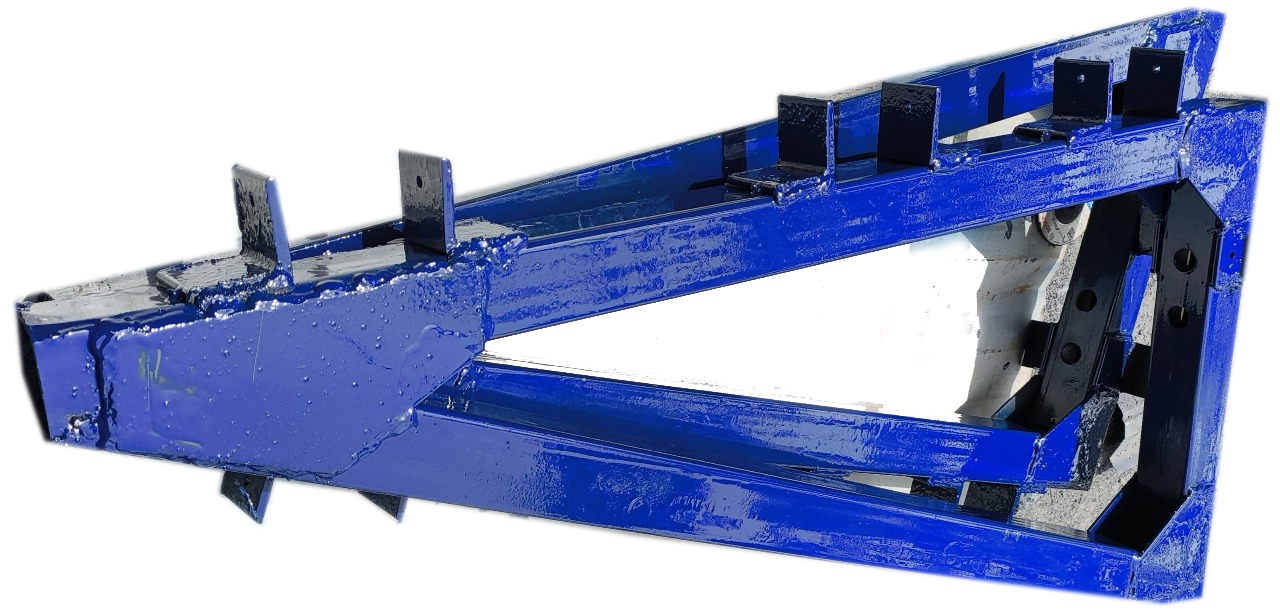

LIFT BRACKET

PRODUCT CODE : SBA030

  • SPECIFICATIONS
  • M. S. Lift Bracket Grade-YST-210 Blue Colur coating (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 9.25

WALKWAY JALLI

PRODUCT CODE : SBA031

  • SPECIFICATIONS
  • 25X25X1.6 MM SQ PIPE LENTH- 2.5 M 25X25X1.6 MM SQ PIPE (Excluded Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 17.3
Get Quote

TRANSFER BOX

PRODUCT CODE : SBA032

  • SPECIFICATIONS
  • MS TRANSFER BOX Blue Colur coating 25X25X3 L ANGLE & 1MM TK SHEET 700X200 mm SIZE (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 9.68

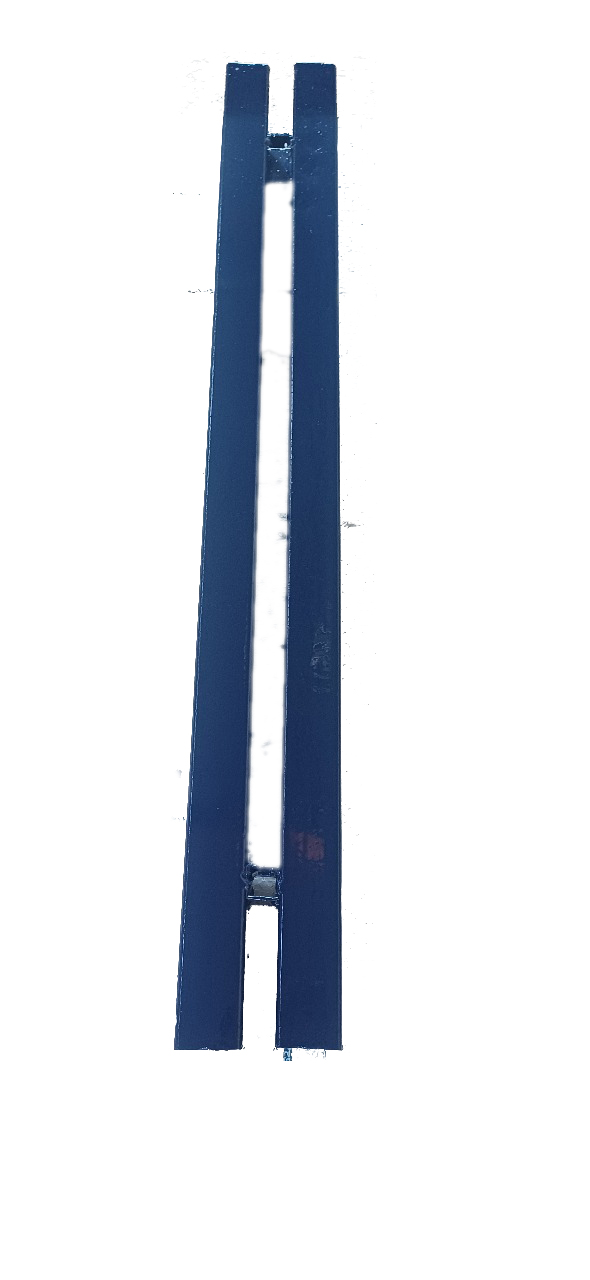

TWIN WALLLER BRAKCET 50X50X3mm -MS TUBE 80X40X3mm -MS TUBE

PRODUCT CODE : SBA033

  • SPECIFICATIONS
  • 50X50X3 TWIN WALLLER BRAKCET Blue Colur coating SPECIFICATION 50X50X3 (Included Aluminium formwork System) Based on Design
  • UNIT
  • Per RMT
  • WEIGHT (Kgs)
  • 8.7 10.7

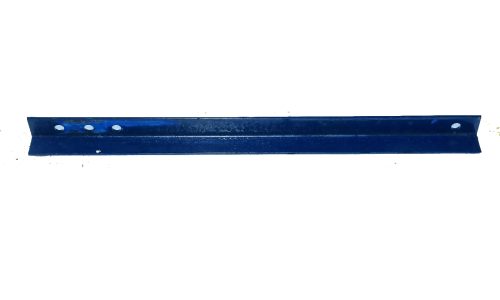

SUNKEN SPACER

PRODUCT CODE : SBA034

  • SPECIFICATIONS
  • 50x50x5MM L ANGLE Blue Colur coating (Included Aluminium formwork System)
  • UNIT
  • Per Meter
  • WEIGHT (Kgs)
  • 3.78

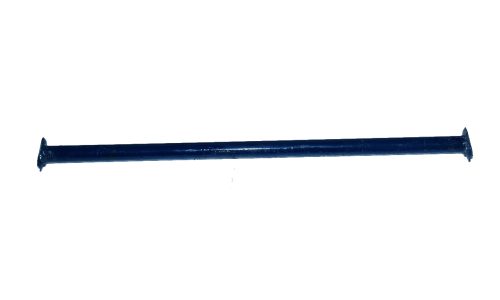

CUPLOCK LEDGER 0.9 M 1.5 M 2.0 M

PRODUCT CODE : SBA035

  • SPECIFICATIONS
  • 48 mm Dia MS pipe Blue Colur coating (Excluded Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 3.35 5.35 6.75

CUPLOCK VERTICAL 2 M 2.5 M

PRODUCT CODE : SBA036

  • SPECIFICATIONS
  • 48 mm Dia MS pipe Blue Colur coating 2m Pipe 3m Pipe (Excluded Aluminium formwork System)
  • UNIT
  • Per RMT
  • WEIGHT (Kgs)
  • 8.95 11.25

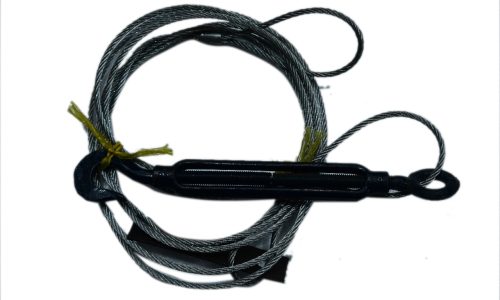

TURN BUCKCLE SIZE 6mm 5 m Length SIZE 10mm 6 m Length

PRODUCT CODE : SBA037

  • SPECIFICATIONS
  • Ms turn Buckle with Wire Rope 6m length 6mm tk rope (Excluded Aluminium formwork System)
  • UNIT
  • Per Meter
  • WEIGHT (Kgs)
  • 2.34 4.36
Get Quote

MS 25X25X1.6 MM PIPE Blue Colur coating (Excluded Aluminium formwork System)

PRODUCT CODE : SBA038

  • SPECIFICATIONS
  • 48 mm Dia MS pipe Blue Colur coating (Excluded Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 15.28 17.25 18.75

PLUMBING GROOVES G1- 60mm width x 50mm depth 3mm thk G2- 75mm width x 50mm depth 3mm thk G3- 150mm width x 50mm depth 3mm thk G4- 300mm width x 50mm depth 3mm thk

PRODUCT CODE : SBA039

  • SPECIFICATIONS
  • ALUMINUIM SHEET 3mm Tk Grade-H32-5052 (Excluded Aluminium formwork System)
  • UNIT
  • Per RMT
  • WEIGHT (Kgs)
  • 1.50 1.62 2.23 3.50

PVC PIPE Black 3 mtr long White 3 mtr long

PRODUCT CODE : SBA040

  • SPECIFICATIONS
  • P. V. C. Pipe 22 mm ID 3 Mtr long (Excluded Aluminium formwork System)
  • UNIT
  • Per Meter
  • WEIGHT (Kgs)

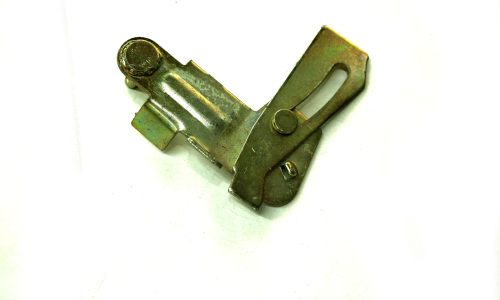

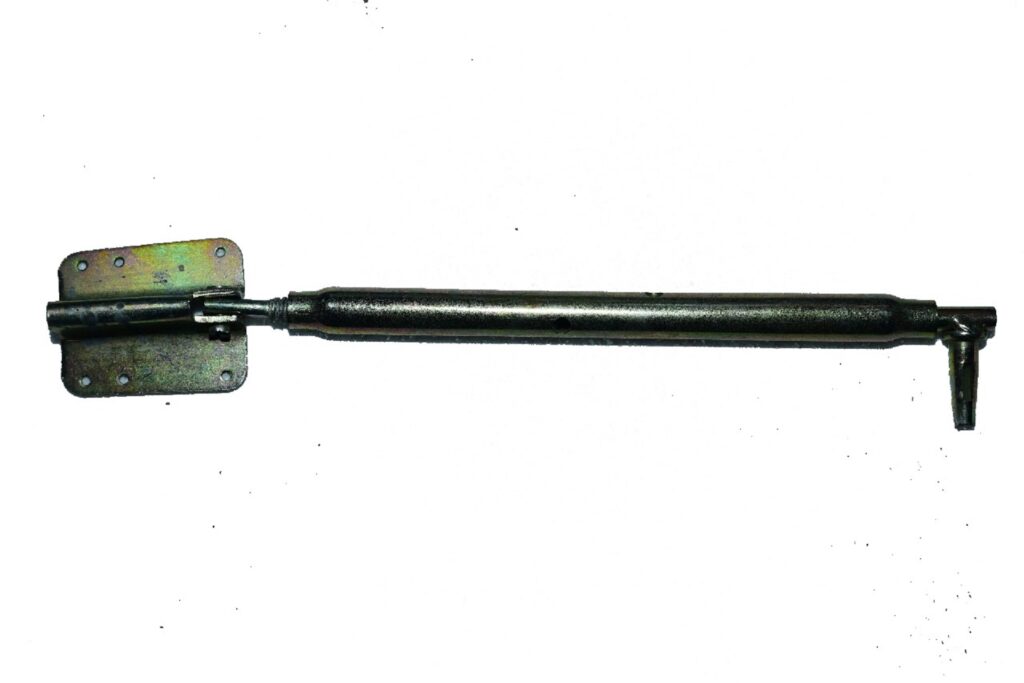

ALIGNEMNT CLAMP 600MM LONG

PRODUCT CODE : SBA041

  • SPECIFICATIONS
  • Zinc Plated SPECIFICATIONS (Excluded Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 0.62

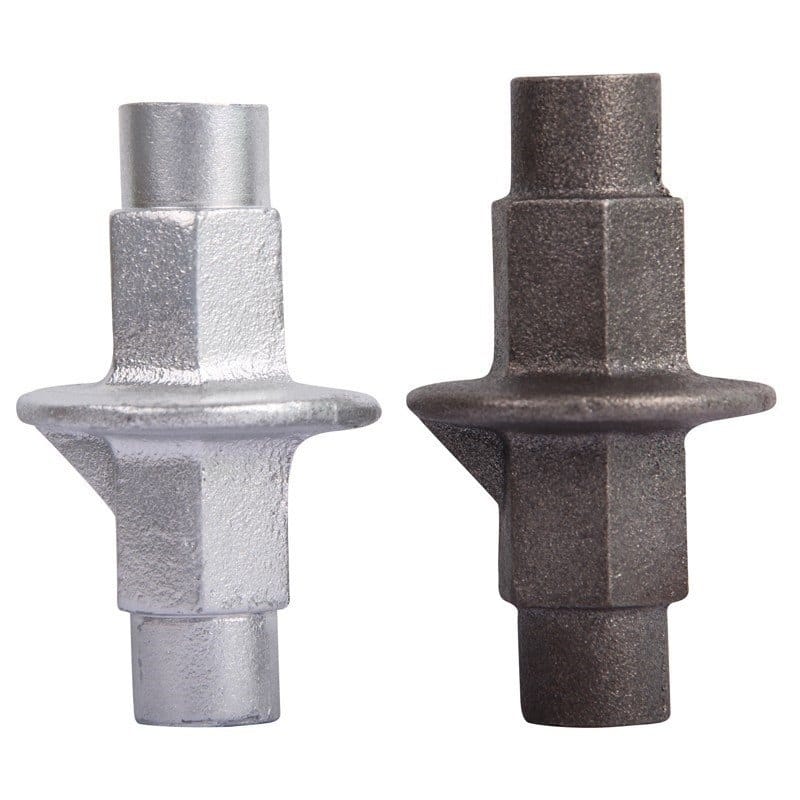

WATER STOPPER

PRODUCT CODE : SBA042

  • SPECIFICATIONS
  • (Excluded Aluminium formwork System)
  • UNIT
  • Per RMT
  • WEIGHT (Kgs)
  • 1.50 1.62 2.23 3.50

U JACK 600 MM Length 450 mm Length 300 mm Length

PRODUCT CODE : SBA043

  • SPECIFICATIONS
  • 28 MM DIA (Excluded Aluminium formwork System)
  • UNIT
  • Per Meter
  • WEIGHT (Kgs)
  • 3.970 3.460 2.425
Get Quote

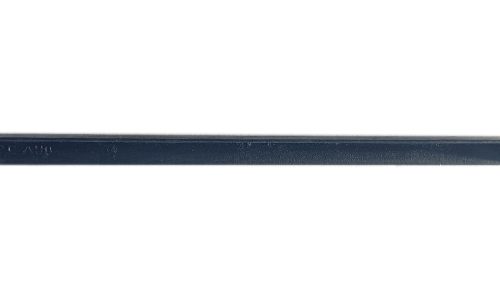

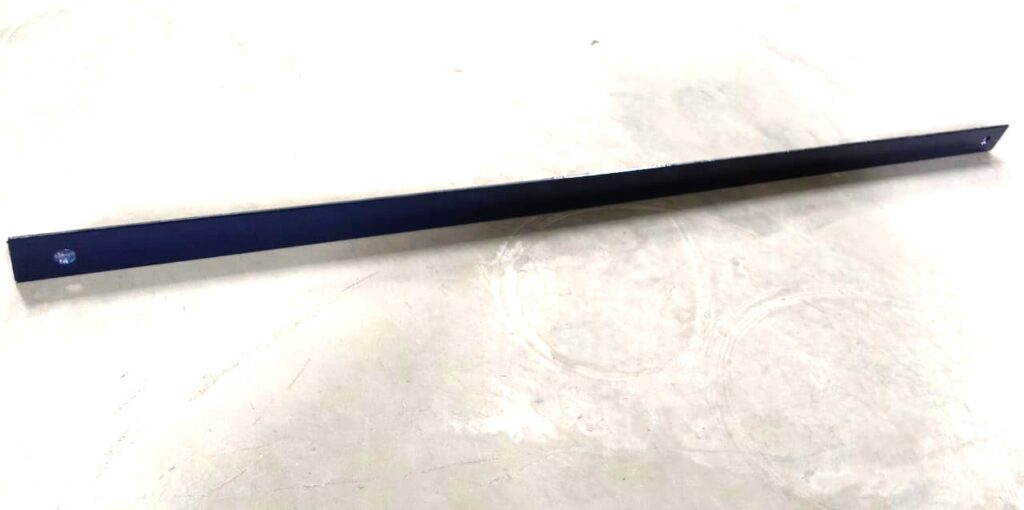

BUILDING SPACER

PRODUCT CODE : SBA044

  • SPECIFICATIONS
  • 50x50x5 MM L ANGLE Blue Colur coating (Included Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 3.78

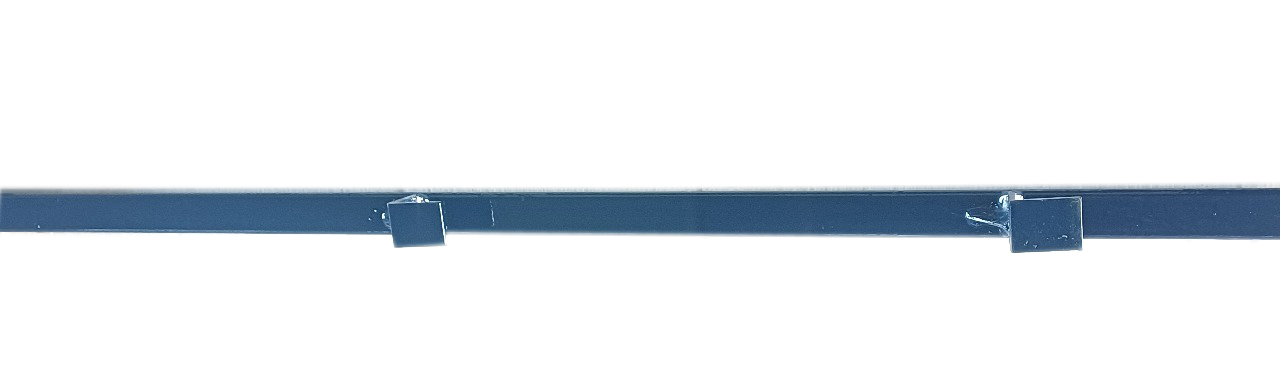

EXTENSION PIPE

PRODUCT CODE : SBA045

  • SPECIFICATIONS
  • 25X25X1.6MM MS PIPE 2.5 M LENGTH (Excluded Aluminium formwork System)
  • UNIT
  • Per No
  • WEIGHT (Kgs)
  • 2.85
